A failing pre-amplifier (pre-amp) can cause one of the most famous hard drive failure symptoms: the dreaded click of death. However, a clicking sound can indicate a number of different failures, and pre-amp issues — like many hard disk drive (HDD) component issues — must be diagnosed in a professional laboratory.
In this article, we will examine the function of the pre-amp, why it fails, and how the data recovery process works.
If you’ve lost data due to a hard drive failure, we’re here to help. Call 1-800-237-4200 or submit a case online to schedule a risk-free evaluation.
What Does a Hard Drive Pre-Amp Do?
The pre-amplifier is a specialized integrated circuit located directly on the head stack assembly (HSA) inside the hard drive’s sealed chamber. It amplifies the weak electrical signals picked up by the read/write heads as they pass over the magnetic platters.
Because the data signals are so faint, they are susceptible to electronic noise. The pre-amp boosts these signals before they travel through the flexible ribbon cable to the main logic board (the PCB).
Without a functional pre-amp, the drive’s controller cannot interpret the data, even if the heads are physically intact.
HDD Pre-Amp Failure and the Click of Death
When you power on a hard drive, the controller attempts to read the servo tracks, which are markings on the platters that tell the heads where they are.
If the pre-amp is damaged, the signal from the heads never reaches the controller. The drive’s brain assumes that it missed the mark, so it recalibrates by swinging the heads back to the home position and trying again.

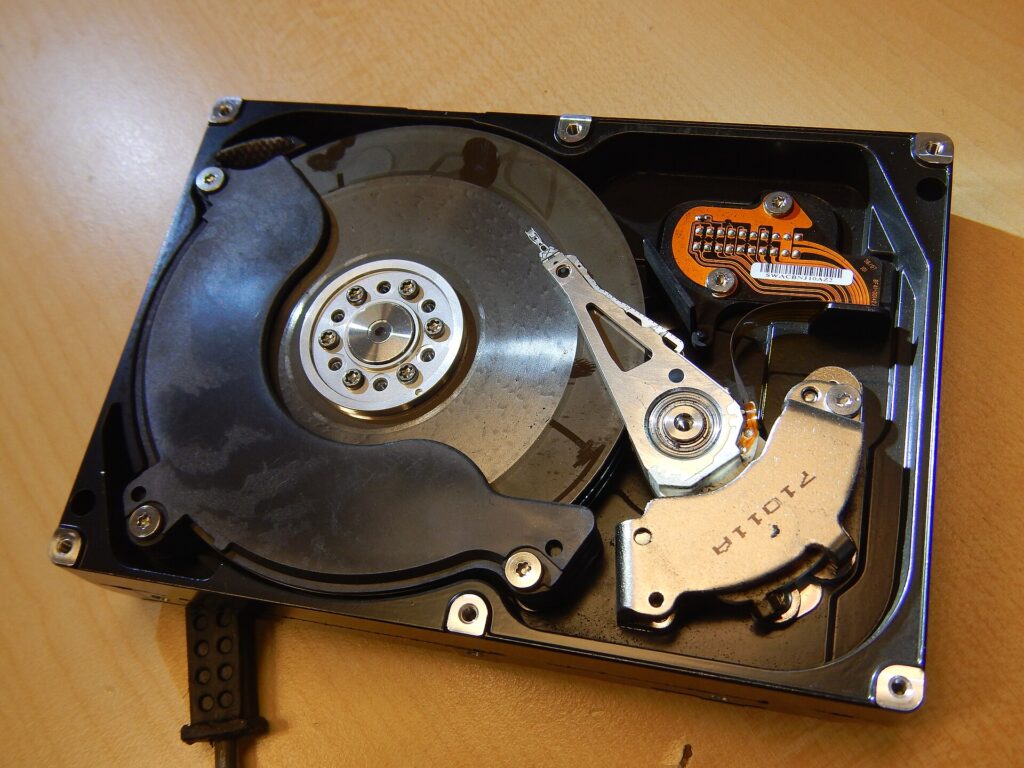

The platters and actuator heads of a hard drive.
The clicking is the sound of the head stack hitting the physical stop at the end of its range of motion. In our cleanroom environments, we often see this repetitive cycling lead to further mechanical wear if the drive is left powered on. For that reason, we strongly recommend disconnecting the power to any hard drive that shows signs of a physical failure.
What Causes HDD Pre-Amp Failure?
Pre-amps are sensitive to electrical fluctuations. While they are protected inside the drive’s chassis, that protection isn’t perfect.
Damage might occur due to:
- Power Surges: An unstable power supply or a sudden surge can bypass the external PCB protections and fry the internal circuitry.
- Static Discharge: Electrostatic discharge (ESD) can neutralize the delicate traces on the chip. We should note that this is relatively rare, apart from cases where clients attempt their own repairs without taking appropriate precautions.
- Thermal Stress: Excessive heat can cause the microscopic bonds within the pre-amp to expand and fail.
- Physical Shock: A drop or tip-over event can cause the heads to crash, which often shorts out the pre-amp circuit simultaneously.
A Strategic Overview of the Recovery Process
Recovering data from a drive with a failed pre-amp is not a software-level fix. Because the failure is internal, the drive must be opened in a Class 100 ISO 5 Cleanroom to prevent airborne particles from ruining the platters.
The recovery process typically involves the following steps:
- Donor Matching: We must locate a donor drive that is a near-perfect match in terms of model, firmware version, and site code. Even small discrepancies in the manufacturing batch can make a donor part incompatible. See Datarecovery.com’s extensive hardware library.
- Head Stack Replacement: Since the pre-amp is permanently attached to the head stack, the entire assembly must be swapped. That requires specialized tools to maintain the precise alignment of the heads.
- Firmware Adaptation: Modern drives often store unique calibration constants on the pre-amp or the PCB. We may need to use specialized hardware tools to synchronize the new hardware with the original drive’s logic.
- Imaging: Once the drive is stabilized, we use imaging equipment to clone the data to a healthy drive, bypassing bad sectors and managing read timeouts.
Note: Never attempt to open a hard drive or swap components yourself. Learn why DIY data recovery is dangerous.
Why Professional Intervention is Necessary
Data recovery from a failed pre-amp requires a microscopic precision and deep architectural knowledge of hard drive firmware. At Datarecovery.com, we utilize purpose-built systems designed to handle the complexities of internal component failure.
